DIN 83313 Spelter Socket
Thimbles

DIN 83313 Sockets

 top arrow next item arrow

Open Spelter Sockets Self Coloured

DIN 83313 Form B (without bolts)
Form C (with safety bolts)

German flag Made in Germany
open spelter socket open spelter socket dimensions
Part-No. Size Rope -ø mm WLL in kg B1 mm B2 mm C mm D1 mm D3 mm D4 mm E mm H mm Weight per 100 pieces kg
B/C B/C
BA76/77016 1.6 12-14 1600 37 27 12 17 M20 20 55 147 0.9/1.1
BA76/77025 2.5 14-18 2500 45 33 14 20 M24 24 67 175 1.4/1.8
BA76/77030 3 16-20 3000 50 38 16 22 M27 27 73 195 1.8/2.4
BA76/77040 4 18-22 4000 54 42 18 24 M30 30 81 212 2.4/3.2
BA76/77050 5 20-24 5000 60 47 20 27 M36 36 88 237 3.7/5.0
BA76/77060 6 22-28 6300 67 53 23 30 M39 39 94 262 5.0/6.7
BA76/77080 8 26-30 8000 73 60 26 33 M45 45 104 289 7.0/9.5
BA76/77100 10 28-34 10000 80 66 29 36 M48 48 116 320 10/13
BA76/77120 12 32-38 12500 89 73 32 40 M52 52 130 356 13/17
BA76/77160 16 36-44 16000 100 81 35 45 M60 60 143 397 18/24
BA76/77200 20 40-50 20000 110 90 40 50 M68 68 157 435 23/31
BA76/77250 25 44-54 25000 120 100 43 55 M72x6 72 179 480 31/41
BA76/77320 32 50-62 31500 132 110 48 60 M80x6 80 191 525 42/55
BA76/77400 40 58-72 40000 150 125 54 68 M90x6 90 218 595 60/80
BA76/77500 50 62-76 50000 165 140 60 75 M100x6 100 238 65 80/105

Closed Spelter Sockets

DIN 83313
Form A - Self Coloured

German flag Made in Germany
closed spelter socket
Part.-No. Size Rope mm WLL in kg B mm C mm D1 mm D2 mm E mm F mm H mm L mm Weight p. 1 pc. kg
BA75016 1.6 12-14 1600 37 12 17 55 76 19 15 15 0.7
BA75025 2.5 14-18 2500 45 14 20 62 89 24 182 19 1.2
BA75030 3 16-20 3150 50 16 22 69 98 26 202 21 1.5
BA75040 4 18-22 4000 54 18 24 76 106 30 220 24 2.0
BA75050 5 20-24 5000 60 20 27 85 117 34 245 27 3.1
BA75060 6 22-28 6300 67 23 30 94 131 38 275 30 4.2
BA75080 8 26-30 8000 73 26 33 103 143 42 300 33 5.8
BA75100 10 28-34 10000 80 29 36 112 160 45 330 36 8.0
BA75120 12 32-38 12500 89 32 40 125 179 51 370 41 11.0
BA75160 16 36-44 16000 100 35 45 140 200 56 415 46 15.0
BA75200 20 40-50 20000 110 40 50 156 224 62 460 50 20.0
BA75250 25 44-54 25000 120 43 55 173 246 69 505 55 27.0
BA75320 32 50-62 31500 132 48 60 18 270 76 55 61 35.0
BA75400 40 58-72 40000 150 54 68 212 308 85 630 68 50.0
BA7500 50 62-76 50000 165 60 75 235 339 94 695 77 67.0

Thimbles

 top arrow

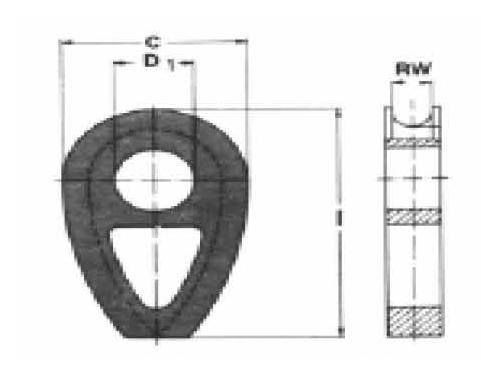

DIN 309 European Solid-Thimbles

(Size 8 – 14 and 44 * DIN 3091 issue 11-1976, Size 16 –80 DIN 3091 issue 12-1988)

european solid thimbles
Part no. Size Groove
Width
mm (RW)		 Standard
Hole
mm (D1)		 Hole drilled
mm (D1)
from – to		 Outside
Width
mm (C)		 Outside
Length
mm (l)		 Weight
per. each
pieces.
kg
BA06080* 8 9 14 17 – 20 40 56 0.18
BA06100* 10 11 18 21 – 25 50 70 0.32
BA06120* 12 13 21 24 – 30 60 84 0.52
BA06140* 14 16 25 29 – 35 70 96 0.80
BA06160 16 18 28 32 – 40 80 130 0.90
BA06180 18 20 31 35 – 45 90 145 1.21
BA06200 20 22 35 40 – 50 100 161 1.61
BA06220 22 24 38 43 – 55 110 177 2.11
BA06240 24 26 41 46 – 60 120 193 2.71
BA06260 26 29 44 49 – 65 130 209 3.55
BA06280 28 31 47 52 – 70 140 224 4.20
BA06320 32 35 53 58 – 80 160 256 6.30
BA06360 36 40 59 65 – 90 180 288 8.84
BA06400 40 44 65 71 – 100 200 320 11.00
BA0640* 44 48 70 76 – 110 220 352 15.00
BA06480 48 53 76 82 – 120 240 386 20.00
BA06520 52 57 81 87 – 130 260 416 25.00
BA06560 56 62 86 92 – 140 280 448 32.00
BA06640 64 70 95 103 – 160 320 512 46.00
BA06720 72 79 104 112 – 180 360 576 66.00
BA06800 80 88 112 120 – 200 400 640 90.00

European Solid-Thimbles

DIN 83311
Hot Dipped Galvanized

european solid thimbles
Part no. Size Groove
Width mm (RW)		 i. Width
mm (C)		 i. Length
mm (I)		 Thickness
(S)		 Weight per
100 pcs.
Kg
BA0710 0.6 11 28 50 4 10
BA07130 1.0 13 32 60 5 18
BA07150 1.6 15 38 68 6 24
BA07170 2.0 17 42 76 7 38
BA07190 2.5 19 48 85 8 50
BA07210 3.0 21 53 95 9 70
BA07240 4.0 24 60 110 10 110
BA07280 5.0 28 70 125 10 141
BA07300 6.0 30 75 135 12 254
BA07340 8.0 34 85 150 13 282
BA07380 10.0 38 95 170 15 418
BA07420 12.0 42 105 190 16 513
BA07460 16.0 46 115 205 16 550
BA07500 20.0 50 125 225 18 930
BA07560 25.0 56 140 250 20 1303
BA06200 31.0 62 15 280 21 1363
BA07680 40.0 68 170 306 23 1930
BA07750 45.0 75 185 340 25 2460

Use with High Tensile Bow and Dee Shackles.



Thimbles DIN 6899 Form B galvanized
(Size 2,5 – 6 electro galvanized , from Size 7 to 42 hot dipped galvanized)

Article-No.
Size
Groove Width  mm (RW)
i. Width  mm (C)
i. Length mm (I)
Thickness (S)
Weight per    100 pcs.  kg
mm
2030
2,5
3
12
19
1,2
0,5
2040
3,5
4
13
21
1,2
0,8
2050
4
5
14
23
1,7
1,0
2060
5
6
16
25
2,2
1,6
2070
6
7
18
28
2,2
1,9
2080
7
8
20
32
2,7
3,0
2100
9
10
24
38
2,9
4,7
2120
11
12
28
45
3,2
6,8
2130
13
13
30
48
3,5
8,5
2140
13
14
32
51
3,5
10,0
2160
15
16
36
58
3,8
14,5
2170
17
17
38
61
4,2
18,0
2180
16
18
40
64
4,2
19,0
2200
18
20
45
72
5,2
29,0
2220
20
22
50
80
5,2
32,0
2240
22
24
56
90
6,2
50,0
2260
24
26
62
99
6,5
59,0
2280
26
28
70
112
7,3
82,0
2300
28
30
75
120
8,0
100,0
2320
30
32
80
128
8,0
130,0
2340
32
34
95
152
8,0
160,0
2360
34
36
100
160
8,0
170,0
2380
36
38
110
176
8,5
180,0
2400
38
40
115
184
10,5
275,0
2420
40
42
120
192
10,5
300,0
2450
42
45
150
240
10,5
350,0





Thimbles DIN 3090 Galvanized

Article-No.
Size (D)

Groove Width mm (RW)
i. Width
mm (C)
i. Length
mm (l)
Thickness
mm
Weight per 100 pcs. Kg
05040
4
5
10
20
2.1
1.4
05060
6
7
15
30
2.6
3.0
05080
8
9
20
40
4.0
7.1
05100
10
11
25
50
5.0
17.0
05120
12
13
30
60
6.0
24.0
05140
14
16
35
70
8.0
36.0
05160
16
18
40
80
8.0
50.0
05180
18
20
45
90
9.0
62.0
05200
20
22
50
100
10.0
90.0
05220
22
24
55
110
10.0
100.0
05240
24
26
60
120
10.0
130.0
05260
26
29
65
130
12.0
220.0
05280
28
31
70
140
12.0
240.0
05320
32
35
80
160
15.0
270.0
05360
36
40
90
180
15.0
430.0
05400
40
44
100
200
20.0
570.0
05440
44
48
110
220
20.0
850.0
05480
48
53
120
240
20.0
1120.0
05520
52
57
130
260
25.0
1530.0
05560
56
62
140
280
25.0
2148.0
05600
60
66
150
300
25.0
2300.0
05640
64
70
160
320
30.0
3500.0
05680
68
75
170
340
30.0
3700.0
05720
72
79
180
360
30.0
4100.0
05760
76
84
190
380
30.0
4600.0
05800
80
88
200
400
30.0
5400.0





Thimbles DIN 83311, Hot Dipped Galvanized

Article-No.
Size (D)

Groove Width mm (RW)
i. Width
mm (C)
i. Length
mm (l)
Thickness
mm
Weight per 100 pcs. Kg
07110 0.6 11 28 50 4 10
07130 1.0 13 32 60 5 18
07150 1.6 15 38 68 6 24
07170 2.0 17 42 76 7 38
07190 2.5 19 48 85 8 50
07210 3.0 21 53 95 9 70
07240 4.0 24 60 110 10 110
07280 5.0 28 70 125 10 141
07300 6.0 30 75 135 12 254
07340 8.0 34 85 150 13 282
07380 10.0 38 95 170 15 418
07420 12.0 42 105 190 16 513
07460 16.0 46 115 205 16 550
07500 20.0 50 125 225 18 930
07560 25.0 56 140 250 20 1303
07620 31.0 62 155 280 21 1363
07680 40.0 68 170 306 23 1930
07750 45.0 75 185 340 25 2460
